Solar SnowMax-Universal

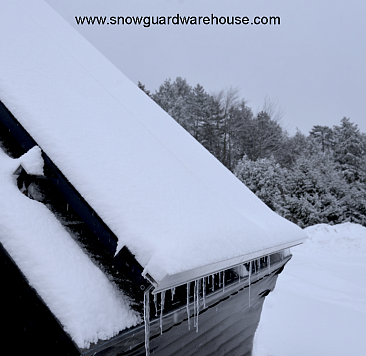

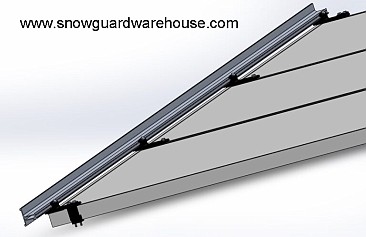

The Solar SnowMax-Universal snow rail system for solar or photovoltaic panels is an array-mounted fence-style system installed at the lowest edge of the solar panel array.

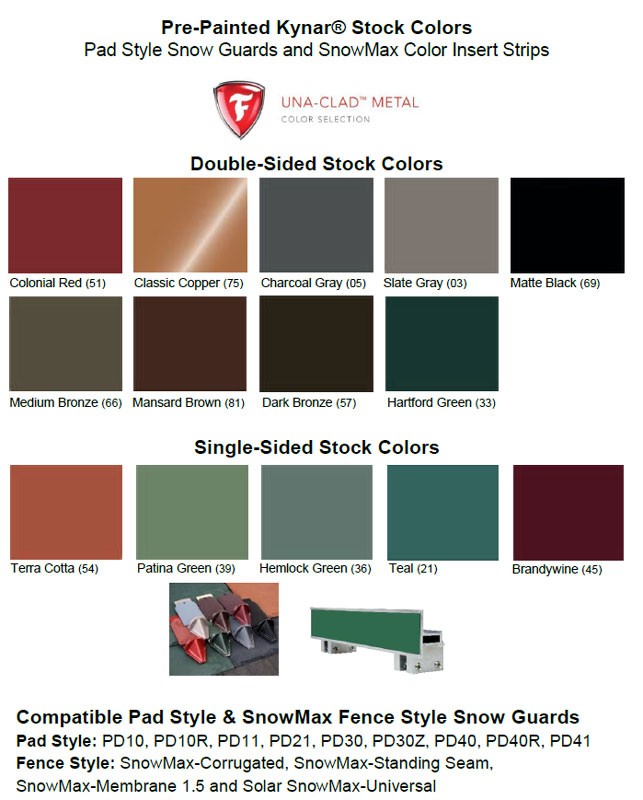

Requires a horizontal bar, either mill finish or with an optional colored Insert Strip. Stock Colors available for the Optional Insert Strip (click on image to download PDF):
OPTIONS:

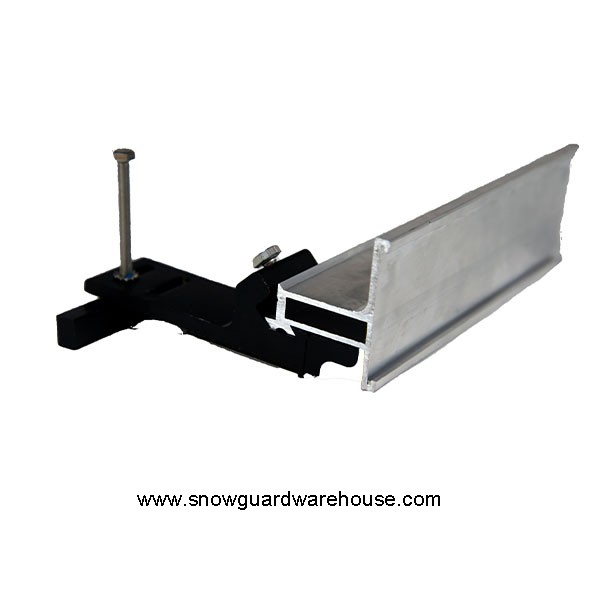

SG-SSM-U-BRKT: This is the middle bracket that holds the 2" bar. The black bracket is the icon image for SnowMax Universal.

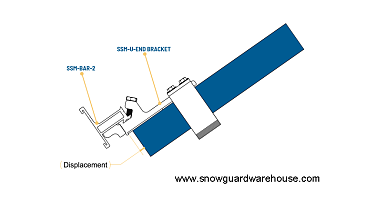

SG-SSM-END-BRKT: End Bracket (pre-assembled) to hold the 2" Bar.
SG-SSM-2"-BAR: 2" Bar (8' length, includes splice plate). Mill Finish aluminum.
SG-SNOWMAX-BLKINSERT: Black insert for the 2" Bar. Ideal for matching the color of the solar array.
SG-SNOWMAX-CLRINSERT: Choose a color insert from the Kynar Color Chart, found under Descriptions. Indicate the color of choice in the Notes during Checkout.
SG-SSM-U-LEVELING-SHIM: Leveling Shim
Depending on the solar array's size, pitch, and location, Alpine solar snow retention components can be installed alone or, for best performance, in combination with another solar snow guard such as the Snow Dog or the SSG-313.
- SnowMax Universal Parts:SnowMax Universal Bracket - Black, SSM-U-BRKT, End Bracket - Mill Finish, SSM-U-END BRKT, 2" Bar (8' Length) -Mill Finish - includes splice, SSM-BAR-2", Black Insert (8' Length), SNOWMAX-CI-69, Color Insert (8' Length) - Indicate color choice in Notes during checkout, Leveling Shim, SSM-U-LEVELING-SHIM

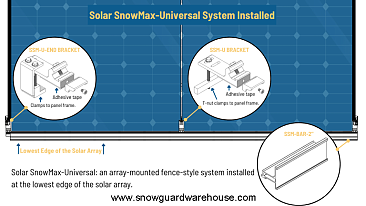

Solar SnowMax-Universal Snow Guard for solar photovoltaic panels is an array-mounted fence-style system. It is 2 inches high and installed at the lowest edge of the solar panel array. It is limited in height to prevent panel shading and maximize snow holding potential. Our solar panel snow guards nearly eliminate panel shading except near sunrise and sunset on very low pitch applications.
<>
